This ATX motherboard is based on Intel B365 chipset and flawlessly supports 8th/9th Intel Core processors of up to eight cores. Large aluminum alloy heatsinks built onboard efficiently take heat away from MOSFET and chipset, and coordinates with onboard patterns presenting a unique look and feel. Super Alloy components guarantee unbeatable stability and reliability, and Full Spike Protection safeguards critical components against voltage spikes. If you're looking for a powerful and feature-rich board offered at a great value, look no further.
- Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
- Supports DDR4 2666
- 2x PCIe 3.0 x16, 2x PCIe 3.0 x1 and 1x M.2 Key E for WiFi
- AMD Quad CrossFireX™
- Graphics Output Options: HDMI, DVI-D and D-Sub
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec) with ELNA Audio Caps
- 6x SATA3, 2x Ultra M.2 (1x PCIe Gen3 x4, 1x SATA3 and 1x PCIe Gen3 x4)
- 8x USB 3.1 Gen1 (2 Front, 5 Rear and 1 Type-C)
- Intel® Gigabit LAN
This motherboard focuses on style just as much as it does on reliable design.

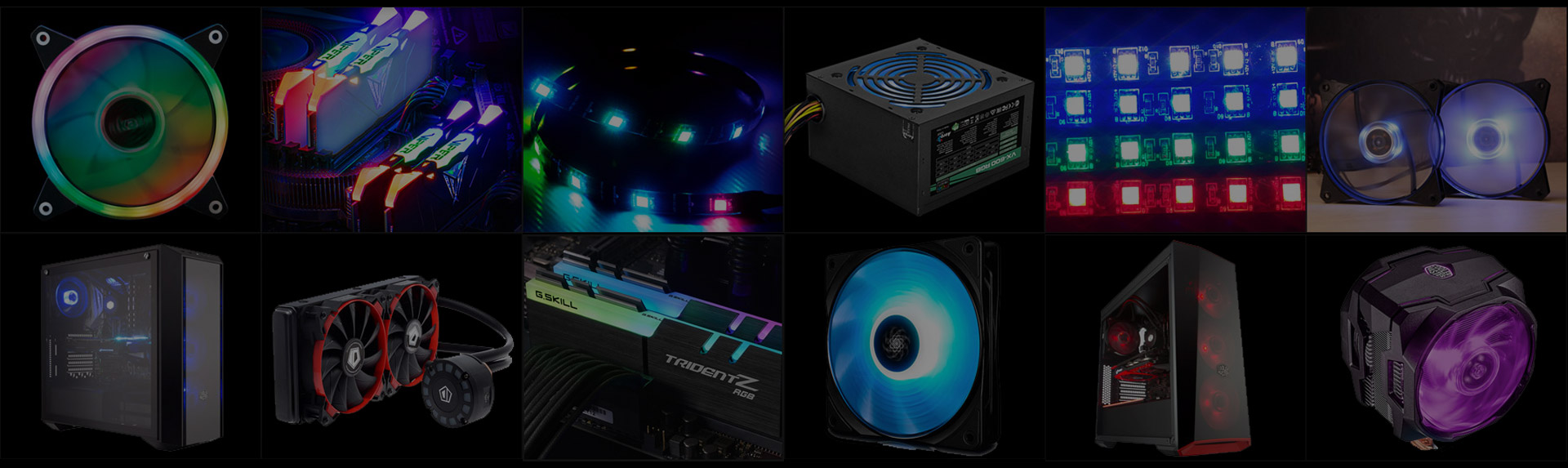

This motherboard features onboard RGB headers and an addressable RGB header that allows the motherboard to be connected to compatible LED devices such as individual strips, CPU fans, coolers, chassis and so on. Users may also synchronize their RGB LED devices across the Polychrome RGB Sync-certified series of accessories to create their own unique lighting effects.
The addressable RGB LED header supports the WS2812B addressable RGB LED strip (5V/Data/GND) with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The RGB LED header supports a standard 5050 RGB LED strip (12V/G/R/B) with a maximum power rating of 3A (12V) and length within 2 meters.
Extra-large aluminum-alloy heat sinks effectively take away heat from the MOSFET and chipset so that your whole system may perform more stably.
A massive full-coverage M.2 heatsink is able to dissipate heat efficiently to ensure your high-speed M.2 SSD always works at its best.
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
The High Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver an ultimate network experience to users!
These motherboards support Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Graphics, graphics and even more graphics! Users have been demanding more eye candy, so this motherboard has been made to support Triple Monitor. You may choose up to three display interfaces from the rear I/O to connect monitors and use them simultaneously without installing another graphics card.

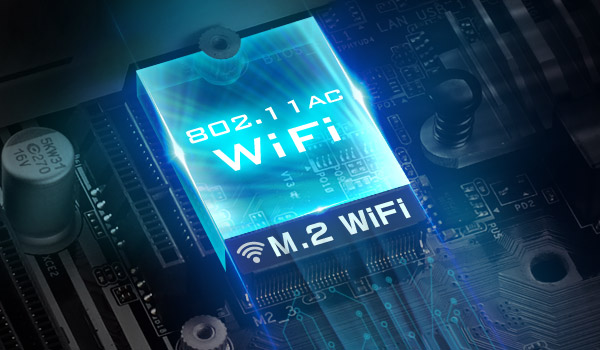

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by the M.2 (Key E) slot.
Wi-Fi module is not included.
Unlike traditional motherboards that use analog power, this motherboard uses a next-generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly. All together, the stability and lifespan of the motherboard is greatly enhanced.

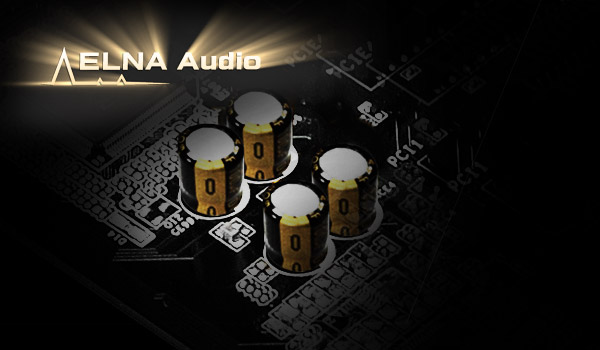

Who says high-quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise levels significantly while satisfying even the pickiest of audiophiles.
The ASRock Live Update & APP Shop has been designed to meet your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with this included software.
Some sensitive digital components on the motherboard are vulnerable to power surges. The excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
|CPU Socket Type||LGA 1151 (300 Series)|
|CPU Type||Supports 9th and 8th Gen Intel Core Processors (Socket 1151)
* Not backward compatible with older generation of LGA 1151 CPUs
|Supported CPU Technologies||Turbo Boost Technology 2.0|
|Number of Memory Slots||4×288pin|
|Memory Standard||DDR4 2666/ 2400/ 2133|
|Maximum Memory Supported||64GB|
|Channel Supported||Dual Channel|
|PCI Express 3.0 x16||2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
* Supports NVMe SSD as boot disks
|PCI Express x1||2 x PCI Express 3.0 x1 Slots (Flexible PCIe)|
|Other Slots||1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module|
|Audio Chipset||Realtek ALC892|
|Audio Channels||7.1 Channels
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Supports Surge Protection
|LAN Chipset||Intel I219-V|
|Max LAN Speed||10/100/1000Mbps|
|Back I/O Ports||1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
5 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
|Onboard USB||2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
|Other Connectors||1 x COM Port Header
1 x TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin)
* Support in total up to 12V/3A, 36W LED Strip.
** Supports in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
|Dimensions (W x L)||12.0" x 9.0"|
|Power Pin||1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
- 128MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment
Software and UEFI:
- ASRock A-Tuning
- ASRock Polychrome RGB
- ASRock XFast LAN
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
* These utilities can be downloaded from ASRock Live Update & APP Shop.
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
- Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH 1.0V, VCCSA, VCCST
- Microsoft Windows 10 64-bit
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
|Date First Available||February 07, 2019|
