GIGABYTE H310M A LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard


Price:
Sale priceDhs. 288.00
Stock:
In stock

GIGABYTE H310M A LGA 1151 (300 Series) Intel H310 HDMI SATA 6Gb/s USB 3.1 Micro ATX Intel Motherboard

General information

GIGABYTE H310M A Motherboard

Packed with features, quality and durability at a budget-friendly price, the GIGABYTE H310M A offers a great entry point into the groundbreaking performance of 8th generation Intel Core series processors. This motherboard is based on Intel H310 chipset, and works flawlessly with 8th generation Intel Core processors, which brings quad-core processing to i3 series and hexa-core computing to i5 and i7 processors. Although a value-priced board for cost-conscious users, the GIGABYTE H310M A offers all the essentials needed to build a robust system, including ultra-fast M.2 with PCIe Gen2 X4 & SATA interface, Intel GbE LAN, DisplayPort & HDMI outputs, and Ultra Durable design and components. It also supports RGB LED strips in 7 colors, enabling you to spruce up your powerhouse and light up your desktop space with customized LED lighting to your liking.

CONNECTIVITY
NVMe PCIe Gen2 x4 2280 M.2 Connector

GIGABYTE motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

General information

Intel GbE LAN with cFosSpeed Internet Accelerator Software

Intel GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

General information

General information

COOLING
Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

General information

Intelligent Fan Control Design

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. That fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

General information

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

Interoperable Sensors and Fans

Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).

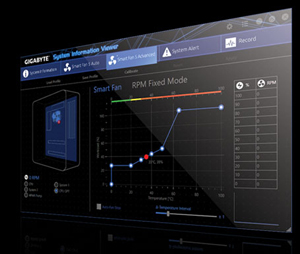

Fan Curve

Customize fan curves based on specific temperatures with the intuitive graphical UI.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior - these are the possibilities of the System Information Viewer.

General information

PERFORMANCE

Immersive VR Gaming Experience

To create a seamless VR experience, GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality. With technologies such as NVMe support via M.2 or U.2 it's obvious that GIGABYTE has the tools you need to start your journey in VR.

  • VR requires more performance than Full HD graphics for a steady 90FPS or greater.
  • Only Gaming PCs can provide the best VR experience.

General information


AUDIO
High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

General information

LIGHTING
Supports RGB Light Strips in 7 Colors

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip. A total of 7 colors are available to make your system appearance unique!

* LED strips not included. Lighting effects may vary by model.

RGB Fusion (Advanced mode)

General information


ULTRA DURABLE
GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

General information

GIGABYTE Exclusive Double Locking Bracket

General information

Start Sulfurization Protection

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

General information

The Industry's Leading Surge Protection

GIGABYTE motherboards also feature special anti-surge IC that protects your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.

General information

Humidity Protection Glass Fabric PCB

There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.

General information

High Temperature Protection Lower RDS(on) MOSFETs Design

GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.

General information


GIGABYTE EXCELLENCE
CEC 2019 Ready
Save the power as easy as one click

CEC Requirement: PC power consumption must be under a certain level when it's in off mode, idle mode, and stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.

General information

General information

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier-to-use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.

* Photos are for reference only. Product features may vary by model.

General information

GIGABYTE APP Center

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

General information

3D OSD

3D OSD automatically detects and displays your system information during games, allowing you to easily get a hold of your system information without switching between screens.

General information

TriDef SmartCam | Custom Stream Modding

To facilitate being the full streaming solution each GIGABYTE motherboard includes TriDef SmartCam software, you are now able to remove backgrounds without the hassle of using a green screen. Through the SmartCam application you can now apply live filters, and fully control your background, not only while streaming, but also through other video applications such as Skype.

*Free 1 month TriDef SmartCam License.

General information

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

*Free 14 days XSplit Gamecaster + Broadcaster Premium License.

General information

4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.

HDMI - The Next Generation Multimedia Interface

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

Model
Brand GIGABYTE
Model H310M A
Supported CPU
CPU Socket Type  LGA 1151 (300 Series)
CPU Type Support for 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package
* Not backward compatible with older generation of LGA 1151 CPUs
Chipsets
Chipset  Intel H310
Onboard Video
Onboard Video Chipset  Integrated Graphics Processor - Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz
* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1GB
Memory
Number of Memory Slots 2×288pin
Memory Standard DDR4 2666/ 2400/ 2133
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.
Maximum Memory Supported 32GB
Channel Supported  Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
PCI Express x1 2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Devices
SATA 6Gb/s  4 x SATA 6Gb/s
M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Onboard Audio
Audio Chipset  Realtek ALC887
Audio Channels  2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
Onboard LAN
LAN Chipset Intel GbE LAN chip
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
PS/2  1 x PS/2 mouse port
1 x PS/2 Keyboard port
HDMI  1 x HDMI
RJ45 1 x RJ45
DisplayPort 1 x DisplayPort
USB 3.1 2 x USB 3.1 Gen 1 ports
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
LED Lighting RGB
Dimensions (W x L) 8.9" x 7.3"
Power Pin 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
Features
Features I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Platform Power Management
RGB Fusion
Smart Backup
Smart Keyboard
Smart TimeLock
Smart HUD
System Information Viewer
USB Blocker
V-Tuner
Support for Q-Flash
Support for Xpress Install

Bundle Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit
Additional Information
Date First Available May 01, 2018
