MSI Creator TRX40 sTRX4 AMD TRX40 SATA 6Gb/s Extended ATX AMD Motherboard


Price:
Sale priceDhs. 3,189.34
Stock:
In stock
Creator TRX40
STABLE CORNERSTONE OF YOUR SYSTEM
Creator TRX40 motherboard
icon-digital
Digital Power

A selection of the highest quality power-delivery components including 70A digital power stages arranged in 16 phases lets the system run reliably even under extreme conditions.

icon-steel_armor
PCIe Steel Armor

Reinforced and shielded PCIe slots for strength and stability.

icon-core_boost
Core Boost Technology

Dual 8-pin CPU power connectors and optimized power circuits let Creator unleash maximum performance.

Creator TRX40
LIGHTNING FAST TRANSFER SPEED
Creator TRX40 motherboard and a video card
icon-wifi6
Latest WiFi 6 Solution

Featuring the latest wireless solution, delivering speeds up to 2,400Mbps and supports MU-MIMO and BSS color technology.

icon-10g_super_lan
10G Super LAN

Connect to an ultra-fast LAN network.

icon-typec-20g
Lightning USB 20G

Ultra-fast USB transfer speeds powered by the ASMedia ASM3242 USB 3.2 Gen2x2 controller.

icon-ddr4_boost
DDR4 Boost with Steel Armor

The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from any other circuit. Shielded DIMM slots protect the point of connection from interference.

icon-gen4
Lightning Gen 4 Solution

Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.

icon-xpander-z
M.2 XPANDER-AERO GEN4

Add four extra Lightning Gen 4 M.2 slots for ultra-fast SSDs and sustain maximum Gen 4 speeds with the AERO heat sink design.

Creator TRX40
NEXT-GEN THERMAL SOLUTION
Creator TRX40 motherboard and a video card
icon-aluminum
All Aluminum Design

All-metal extended heat sink cover enlarges the heat dissipation surface.

icon-m2_shield_frozr
M.2 Shield Frozr

Sustain maximum high-speed M.2 SSD data transfer with the M.2 SHIELD FROZR and prevent SSD thermal throttling with a double-sided thermal design.

icon-extended_heat-pipe
Extended Heat Pipe

A heat pipe redistributes heat across the MOS heat sinks to the chipset heat sink for expanded thermal dissipation.

icon-zero_frozr
Zero Frozr Technology

Fan speed is automatically controlled by an AI tuning system that monitors chipset temperature and can power down temporarily in low-load situations to produce no fan noise.

icon-double_ball_bearing
Frozr Heat Sink Design

The chipset, with its PCI-E Gen4 capabilities, is actively cooled to sustain massive data bandwidth. The airflow fan is built with a durable ball bearing core for long lasting operation.

a motherboard, a video card, a glasses a camera and a pencil
Overkill Power
  • Dedicated 16 phases 70A digital CPU power
  • Extended heat sink and heat pipe design, stacked fin array
  • FROZR heat sink with double ball bearings
  • Dual 8-pin power connectors
Fast Data Transfer
  • 10G LAN + Intel® Gigabit LAN + Intel® WiFi 6
  • Bandwidth management
Flexible Storage Connectivity
  • 7x Lightning Gen 4 M.2 with M.2 XPANDER-AERO Gen 4
  • 6x SATA
  • 19x total USB ports support
  • Lightning USB 20G
  • Front USB Type-C
Total Temperature Control
  • 9x PWM fan headers
  • 3x dedicated thermal sensors
  • 3x double-sided M.2 SHIELD FROZR
the ports of the motherboard

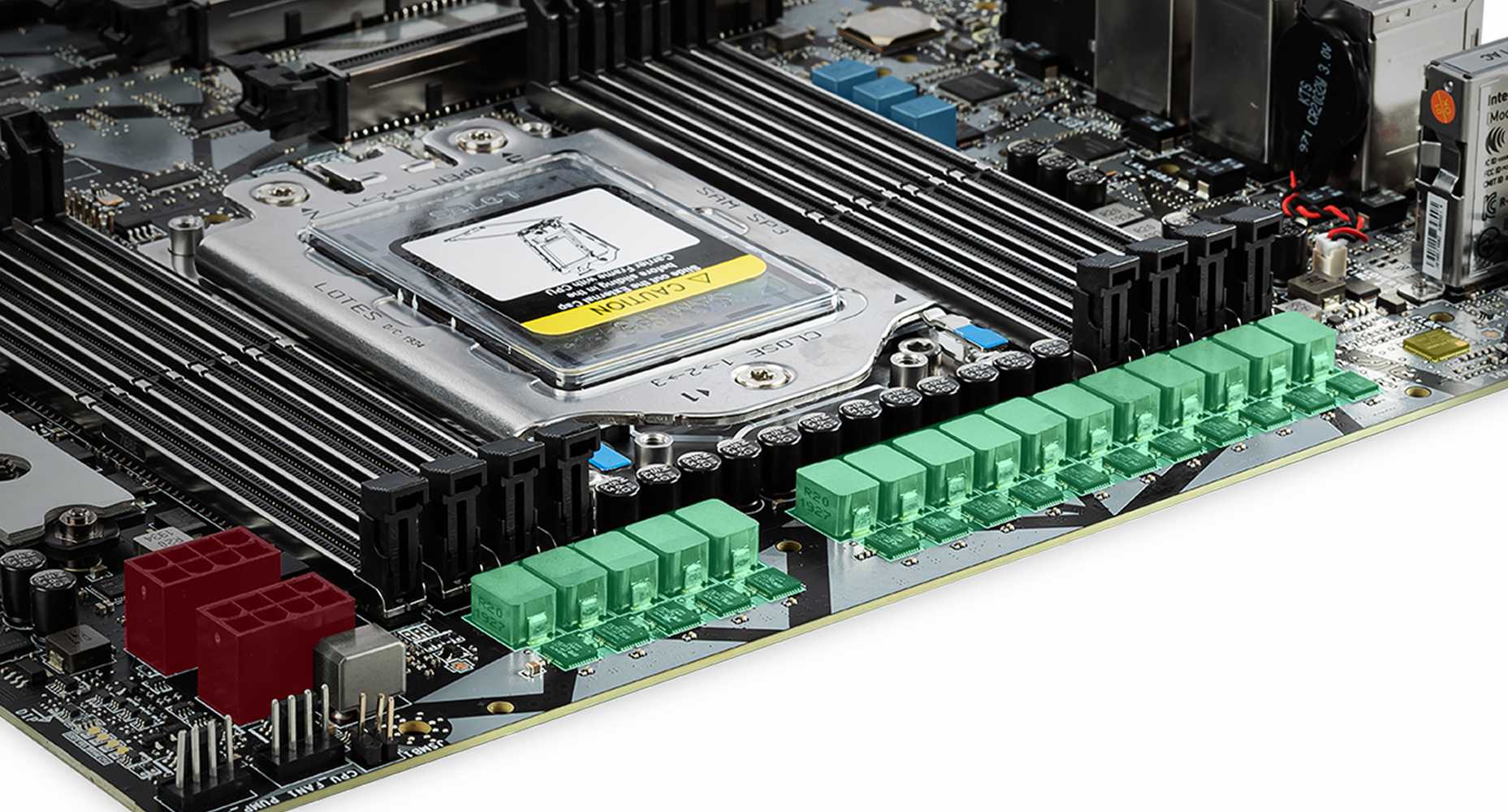

16+3 PHASES DIGITAL POWER WITH ALL-ALUMINUM DESIGN

Creator TRX40 is built with 16 phases 70A digital power componentry on an efficient PCB layout and cooled with an extended heat sink Design to reliably drive the CPU even during heavy workloads.

  • 2x 8-pin CPU power connectors
  • 16 phases 70A digital power direct to processor
  • 3 phases SOC power
  • Digital PWM IC
the cooling of the motherboard

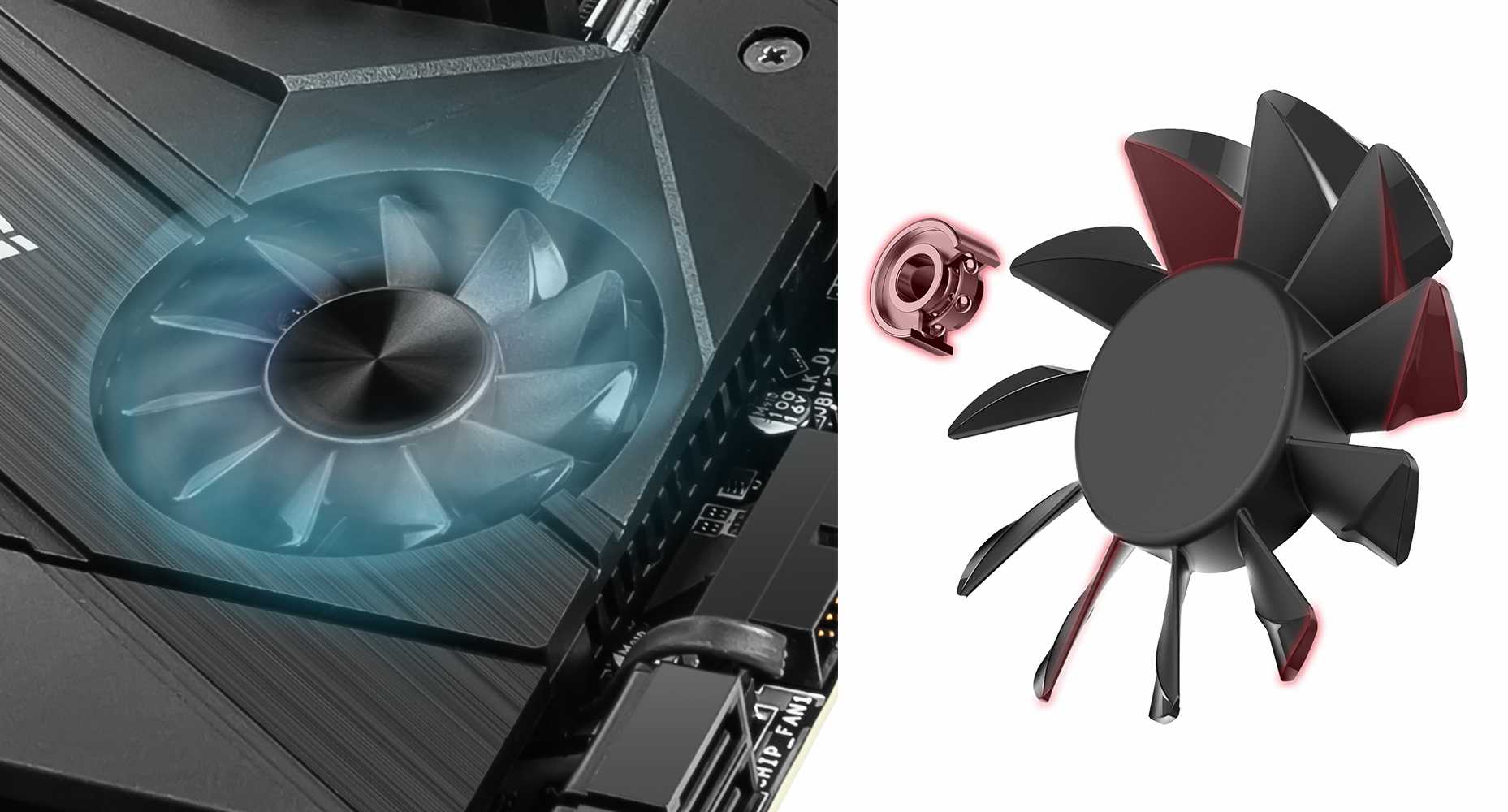

FROZR HEAT SINK

When it comes to high performance motherboards, controlling heat is essential. The chipset, with its PCI-E Gen4 capabilities, is actively cooled to sustain massive data bandwidth.

  • Propeller Blade technology
  • Double ball bearings
  • Zero Frozr & Smart Fan Control
SHIELD FROZR of the motherboard
TRIPLE-LIGHTNING GEN4 M.2 WITH M.2 SHIELD FROZR

Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR. Prevent SSD thermal throttling with a double sided thermal design that includes a heat sink that extends across the motherboard.

capacity of the video card

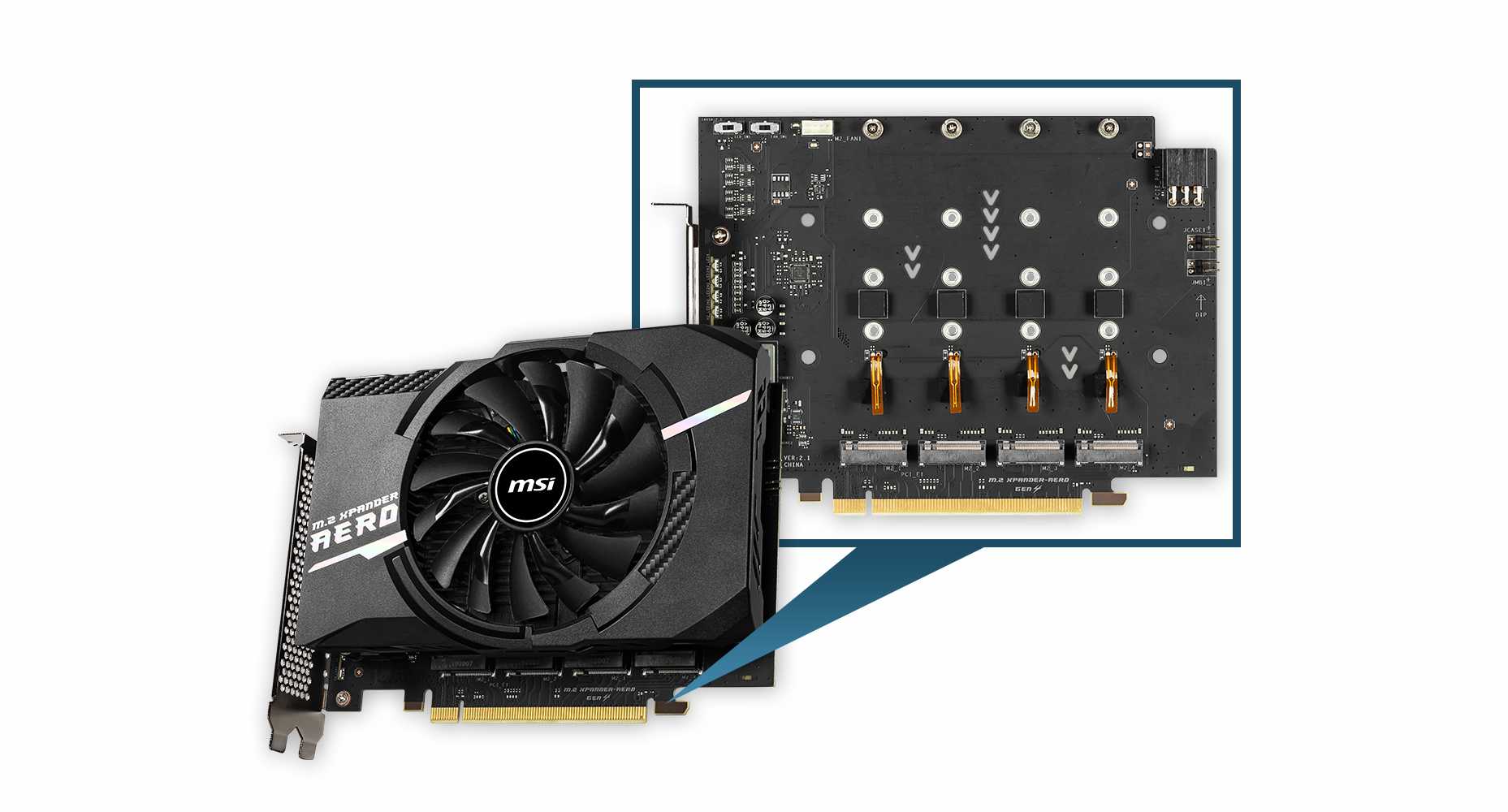

MORE CAPACITY WITH M.2 XPANDER-AERO GEN4 CARD

Add four extra Lightning Gen 4 M.2 slots for ultra-fast SSDs with the bundled M.2 XPANDER-AERO GEN4 accessory card.

inside of the motherboard

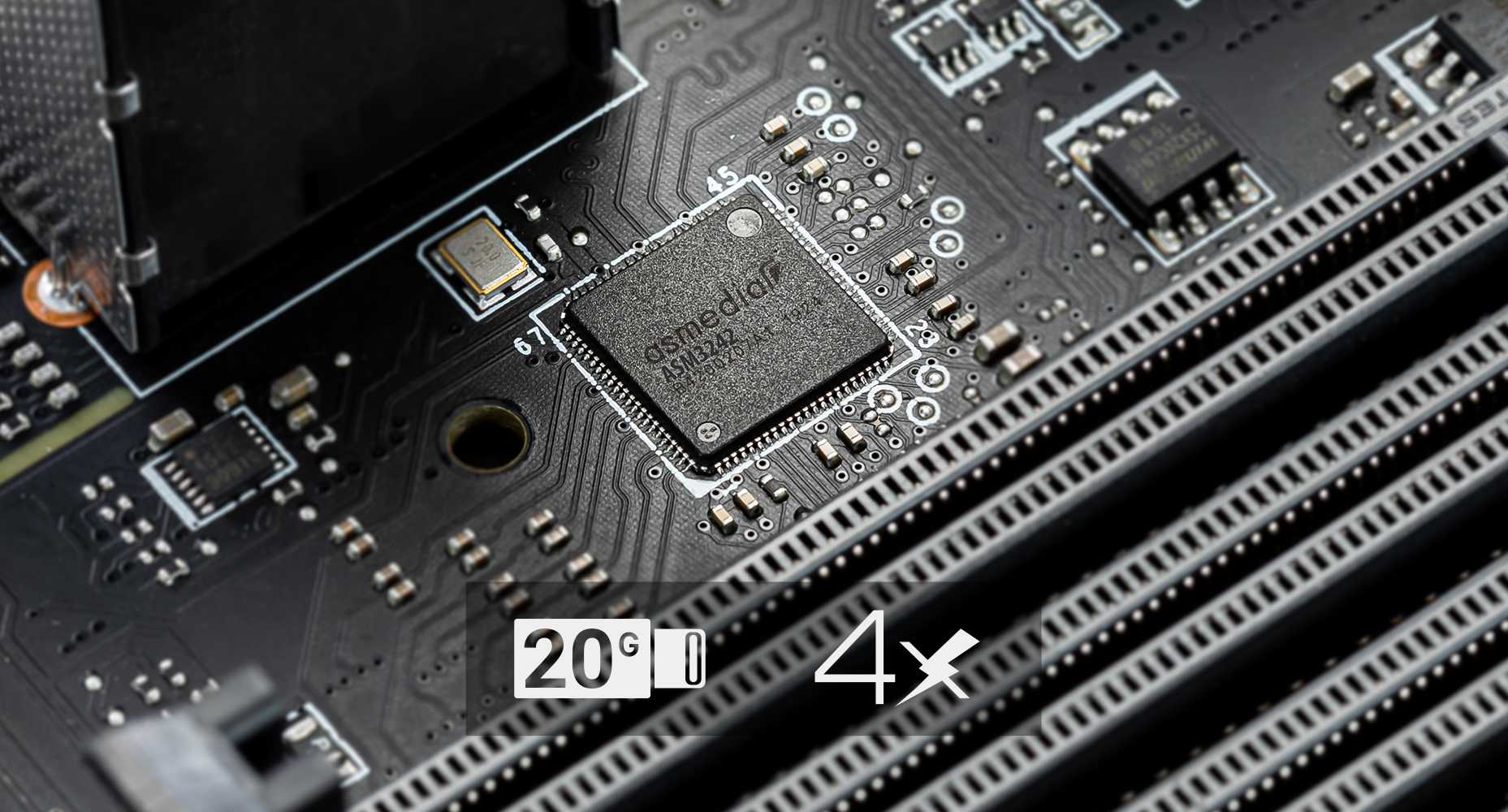

ULTRA-FAST LIGHTNING USB 20G

Quickly move large files including uncompressed video, raw images and bulky simulation data, powered by the ASMedia 3242 chip.

10G SUPER LAN SOLUTION of the motherboard

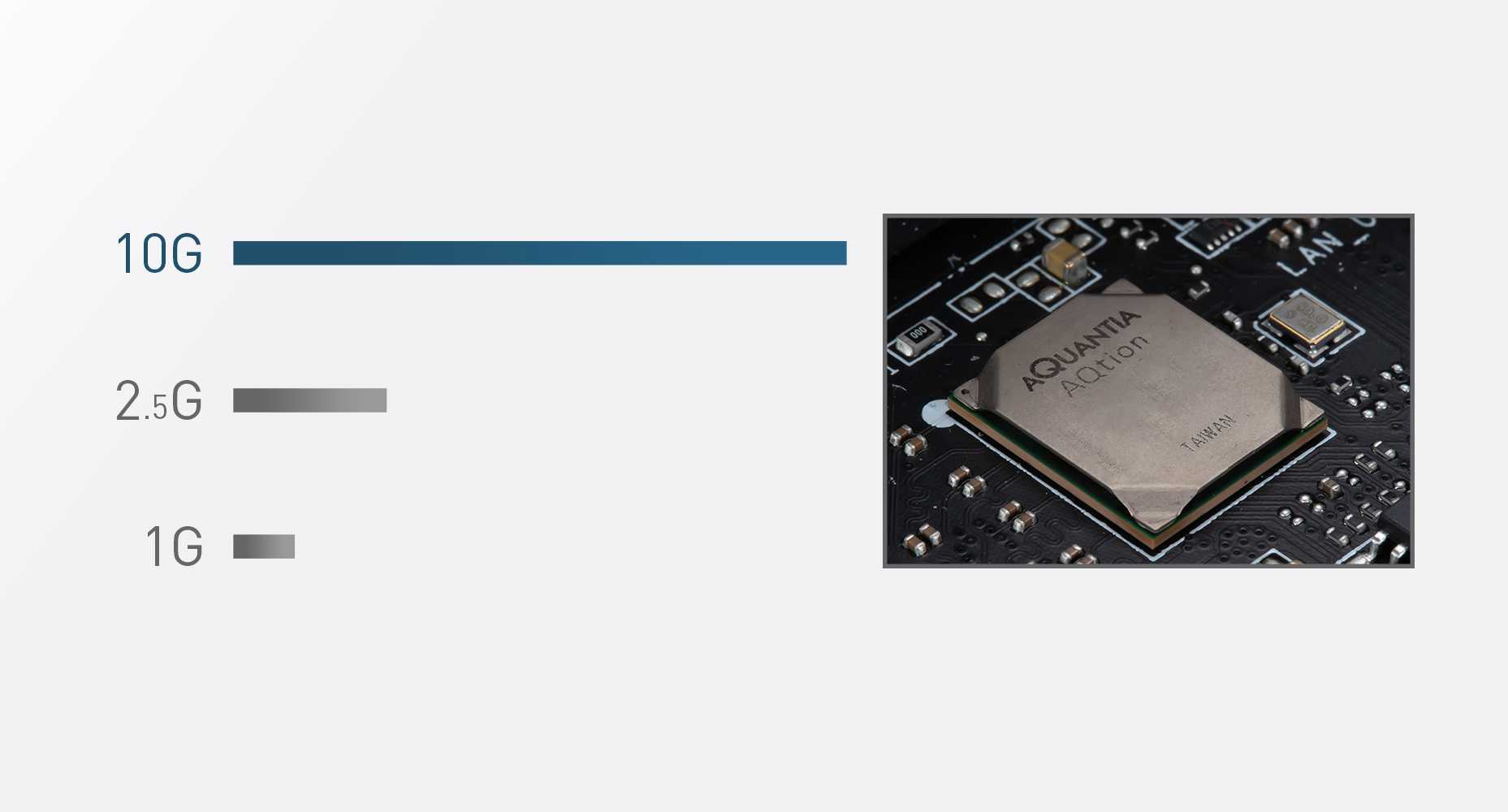

10G SUPER LAN SOLUTION

Onboard 10G Super LAN supports high-bandwidth, high-density and low-latency networks. Quickly transfer 4K video, raw images and other large files across a LAN network.

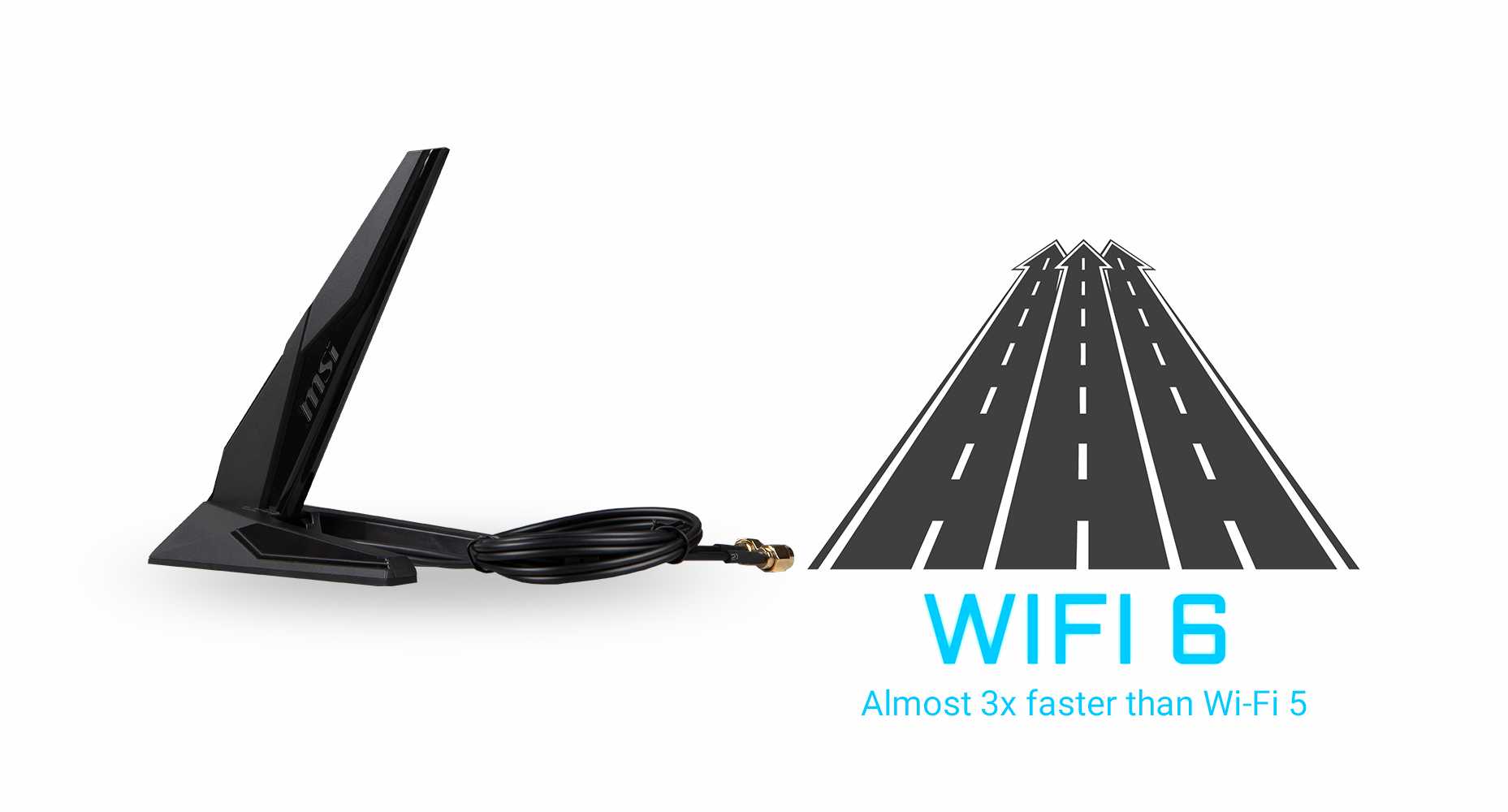

a wifi device and a road
WIFI 6 & BLUETOOTH

Connect to a high-speed WIFI 6 network with onboard Intel® WiFi 6. OFDMA and two-way MU-MIMO technology optimize data transmission and deliver speeds up to 2.4Gbps.

a man is working with a set of computer
AUDIO BOOST 4 WITH NAHIMIC 3

Like a dedicated sound card, Audio Boost 4 with Nahimic offers an HD audio processor, dedicated amplifier and high-quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signa

Model
Brand MSI
Model Creator TRX40
Supported CPU
CPU Socket Type  sTRX4
CPU Type Supports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4
Chipsets
Chipset  AMD TRX40
Memory
Number of Memory Slots 8×288pin
Memory Standard Supports JEDEC 1R 3200/ 2666/ 2400/ 2133 MHz
1DPC 1R max speed 4666 MHz
1DPC 2R max speed 4000 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHz
Maximum Memory Supported 256GB
Channel Supported  Quad Channel
Expansion Slots
PCI Express 4.0 x16 4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 AMD TRX40 Chipset:
1 x M.2 slot (M2_3, Key M)
Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/2260/2280 storage devices
3rd Gen AMD Ryzen Threadripper Desktop Processor:
2 x M.2 slots (M2_1 & M2_2, Key M)
M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/2260/2280 storage devices
M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/2260/2280/22110 storage devices
SATA RAID 0/1/10
Onboard Audio
Audio Chipset  1 x Realtek ALC1220 Codec
1 x Realtek ALC4050H Codec
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset AQUANTIA AQC107
Second LAN Chipset Intel I211-AT
Max LAN Speed 10Gbps + 10/100/1000Mbps
Wireless LAN Intel Wi-Fi 6 AX200:
The Wireless module is pre-install in the M2_4 (Key-E) slot
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4 - 5 GHz (160 MHz) up to 2.4 Gbps

* Only support windows 10 64-bit
Bluetooth BT 5.0
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2x2 Type-C / 2 x LAN (RJ45) / 4 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks / 5 x USB 3.2 Gen 2 Type-A
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin pump fan connector (supports up to 2A)
4 x 4-pin system fan connectors
3 x 4-pin extend fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x TPM module connector
3 x 2-pin Thermal Sensors connectors
1 x 4-pin 5050 RGB LED connector
2 x 3-pin ARGB LED connectors
1 x 3-pin CORSAIR LED connector
1 x LED demo connector
1 x JBLK_U pin header
1 x JBLK_D pin header
1 x OC retry pin header
1 x OC force enter pin header
1 x Slow mode booting jumper
Physical Spec
Form Factor Extended ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 10.9"
Power Pin 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Features
Features Supports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4

Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4666(OC)

More Powerful than Enough: dedicate 16 phases 70A digital power to CPU, with All Aluminum Design

More Efficency for Data Transfer: 10G LAN + Intel Gigabit LAN with Intel WIFI 6 and bandwidth management

More Compatibility for Storage: 7 x Lightning Gen4 M.2 with M.2 XPANDER-AERO GEN4

More Flexibility for Temperature Control: Full fan control with 9 PWM fan headers and 3 dedicated thermal sensor

Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with double-sided M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2

Set Core Power Free: Extended Heatsink and Heat-pipe Design, stacked fin array, Core Boost, Digital PWM IC, dual 8-pin CPU power connectors, DDR4 Boost

Frozr Heatsink Design: Designed with the unique fan and double ball bearings to provide the best performance for creators and prosumers

Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, Rainbow and Corsair LED strip

Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality

Multi-GPU: With Steel Armor PCI-E slots. Supports up to 3-Way NVIDIA SLI & 3-Way AMD Crossfire
Additional Information
Date First Available November 25, 2019
