MSI PRO TRX40 PRO 10G sTRX4 AMD TRX40 SATA 6Gb/s ATX AMD Motherboard


Price:
Sale priceDhs. 2,495.00
Stock:
In stock
TRX40 PRO 10G
STABLE CORNERSTONE OF YOUR SYSTEM
TRX40 PRO motherboard
icon-dual_intel_lan
Dual LAN

Leverage an agile dual LAN solution with redundancy, teaming, or load balancing to connect to dedicated media servers or 10Gbps high-bandwidth internet.

icon-typec-20g
Lightning USB 20G

Ultra-fast USB transfer speeds powered by the ASMedia ASM3242 USB 3.2 Gen2x2 controller.

icon-lightning_gen
Lightning Gen 4 Solution

Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.

TRX40 PRO 10G
LIGHTNING-FAST TRANSFER SPEED
TRX40 PRO motherboard and a video card
icon-dual_intel_lan
Dual LAN

Leverage an agile dual LAN solution with redundancy, teaming, or load balancing to connect to dedicated media servers or 10Gbps high-bandwidth internet.

icon-typec-20g
Lightning USB 20G

Ultra-fast USB transfer speeds powered by the ASMedia ASM3242 USB 3.2 Gen2x2 controller.

icon-lightning_gen_4
Lightning Gen 4 Solution

Transfer data lightning fast across Gen 4 PCI-E and M.2 with up to 64GB/s bandwidth.

icon-core_boost
DDR4 Boost

The memory circuit design has been optimized on a reserved section of the motherboard fully isolated from any other circuit.

icon-xpander
M.2 XPANDER-Z GEN4

Add two extra Lightning Gen 4 M.2 slots for ultra-fast SSDs and sustain maximum Gen 4 speeds with the FROZR heat sink design.

icon-10g_super_lan
10G SUPER LAN card

Connect to an ultra-fast LAN network.

TRX40 PRO 10G
NEXT-GEN THERMAL SOLUTION
TRX40 PRO motherboard and a video card
icon-aluminum
All-Aluminum Design

All-metal extended heat sink cover enlarges the heat-dissipation surface.

icon-m_2_shield_frozr
M.2 Shield Frozr

Sustain maximum high-speed M.2 SSD data transfer with M.2 SHIELD FROZR and prevent SSD thermal throttling.

icon-zero_frozr
Zero Frozr Technology

Fan speed is automatically controlled by an AI tuning system that monitors chipset temperature and can power down temporarily in low-load situations to produce no fan noise.

icon-double_ball_bearing
Frozr Heat Sink Design

The chipset, with its PCI-E Gen4 capabilities, is actively cooled to sustain massive data bandwidth. The airflow fan is built with a durable ball-bearing core for long-lasting operation.

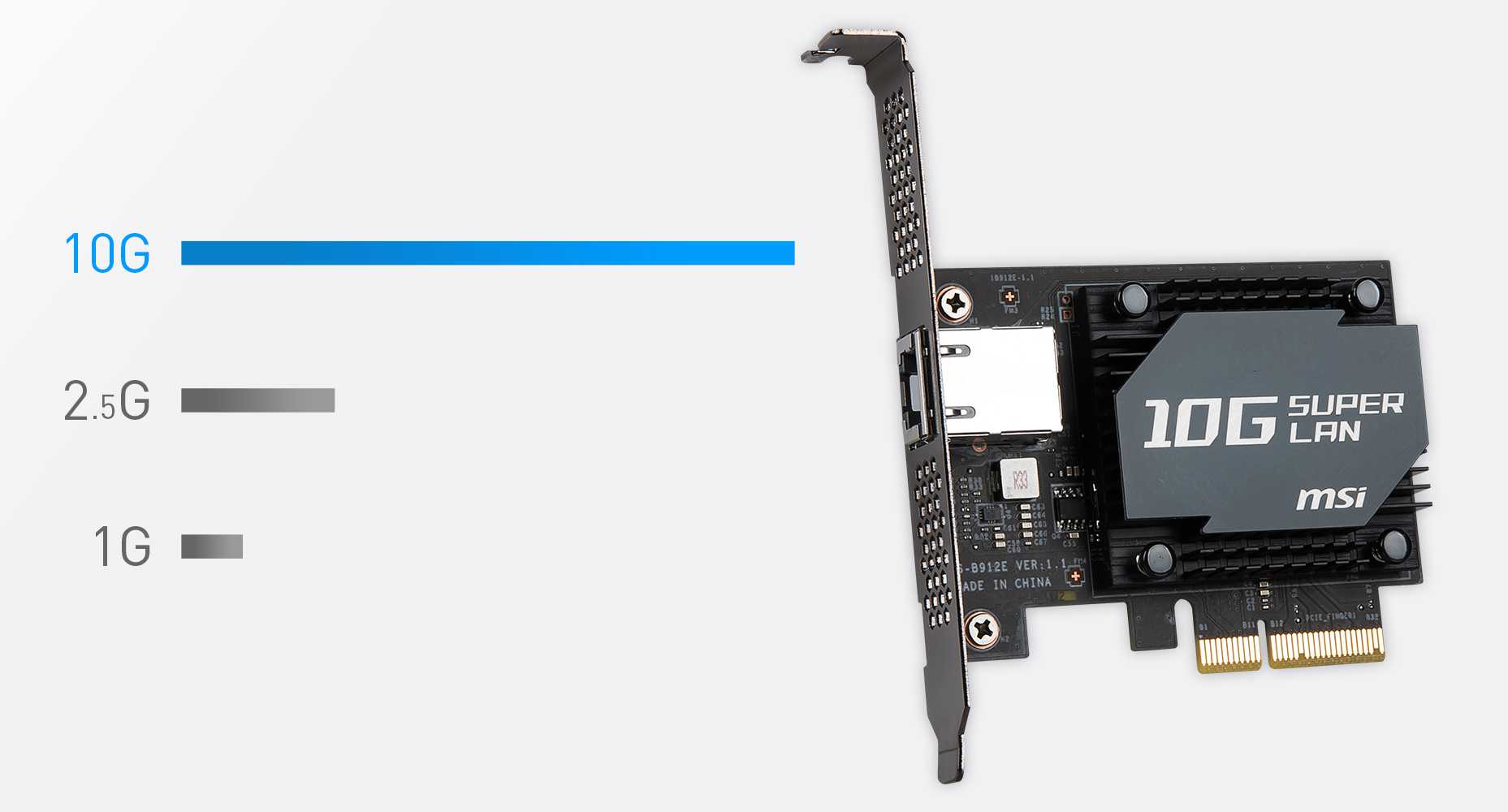

a video card and a chart showing 10G 2.5G and 1G
10G SUPER LAN SOLUTION

10G SUPER LAN accessory card supports high-bandwidth, high-density and low-latency networks. Quickly transfer 4K video, raw images and other large files across a LAN network.

the cooling of the motherboard
FROZR HEAT SINK

When it comes to high performance motherboards, controlling heat is essential. The chipset, with its PCI-E Gen4 capabilities, is actively cooled to sustain massive data bandwidth.

  • Propeller Blade technology
  • Double ball bearings
  • Zero Frozr & Smart Fan Control
the power of the motherboard
DOUBLE POWER CONNECTORS

Double 8-pin connectors deliver adequate power for multi-core CPUs even when overclocking.

extedned  heatsink of the motherboard
EXTENDED HEAT SINK

An all-metal extended heat sink cover enlarges the heat dissipation surface allowing the CPU power system to reliably drive multi-core processors.

inside of the motherboard
ULTRA-FAST LIGHTNING USB 20G

Quickly move large files including uncompressed video, raw images and bulky simulation data, powered by the ASMedia 3242 chip.

twin_turbo of the motherboard
TWIN LIGHTNING GEN4 M.2 WITH M.2 SHIELD FROZR

The world's fastest SSDs can slow down when they get too hot. M.2 SHIELD FROZR extends the motherboard's heat sink over attached M.2 SSDs to prevent thermal throttling and sustain maximum performance.

a chart showing different effect between DDR4 BOOST and OTHERS
UNMATCHED MEMORY PERFORMANCE

MSI takes memory stability and performance to the extreme. We've designed an optimized memory circuit design for reliability and tested compatibility extensively in partnership with major memory manufacturers.

detail of the connection of the video
MULTIPLE GPU SUPPORT AND PCI-E STEEL ARMOR

TRX40 PRO 10G supports both NVIDIA® SLI™ and AMD® CrossFire™ multi GPU technologies. PCI-E slot placements provide optimal airflow for graphics card cooling.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage counts, Steel Armor shields the point of contact from electromagnetic interference.

a man is working with a set of computer in a music studio
AUDIO BOOST 4

Like a dedicated sound card, Audio Boost 4 with Nahimic offers an HD audio processor, dedicated amplifier and high-quality audio capacitors, all physically isolated from the rest of the motherboard circuitry to ensure the purest audio signal.



Model
Brand MSI
Series PRO
Model TRX40 PRO 10G
Supported CPU
CPU Socket Type  sTRX4
CPU Type Supports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4
Chipsets
Chipset  AMD TRX40
Memory
Number of Memory Slots 8×288pin
Memory Standard Supports JEDEC 1R 3200/ 2666/ 2400/ 2133 MHz
1DPC 1R max speed 4666 MHz
1DPC 2R max speed 4000 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHz
Maximum Memory Supported 256GB
Channel Supported  Quad Channel
Expansion Slots
PCI Express 4.0 x16 4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
PCI Express x1 1 x PCIe 3.0 x1 slot
Storage Devices
SATA 6Gb/s  8 x SATA 6Gb/s
M.2 2 x M.2 slots (Key M)
M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/2260/2280/22110 storage devices
M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/2260/2280 storage devices
SATA RAID 0/1/10
Onboard Audio
Audio Chipset  1 x Realtek ALC1220 Codec
1 x Realtek ALC4050H Codec
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset 2 x Intel i211AT
Max LAN Speed Dual 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2x2 Type-C / 2 x LAN (RJ45) / 3 x USB 3.2 Gen 2 Type-A / 4 x USB 3.2 Gen 1 Type-A / 5 x Audio Jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen2 Type-C port
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors 1 x 4-pin CPU fan connector
1 x 4-pin Water Pump Fan connector (supports up to 2A)
4x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin 5050 RGB LED connector
2 x 3-pin ARGB LED connectors
1 x 3-pin CORSAIR LED connector
1 x Slow mode booting jumper
1 x Power button
1 x Reset button
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Features
Features Supports 3rd Gen AMD Ryzen Threadripper Desktop Processors for Socket sTRX4

Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz

Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2

Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12+3 digital power phases, dual 8-pin CPU power connectors, DDR4 Boost

Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers

Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs

M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed

Dual LAN onboard: Premium network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

10G Super LAN card: Next level network speed, secure networking with fastest data throughput to improve efficiency

Audio Boost 4: Reward your ears with studio grade sound quality

Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire
Additional Information
Date First Available November 25, 2019
